Symetrie Hexapod stages

gil — Sun, 10 Jul 2022 16:02:31 +0000

PRECISION & DYNAMICS

Symétrie hexapods are designed to be precise (measuring hexapod or micro-positioning hexapod) or dynamic (simulators).

The very low mass-to-stiffness ratio gives them great dynamics with a high load capacity.

WHY PARALLEL ARCHITECTURE?

■ Better footprint
■ Improved mechanical robustness

■ Better mass/stiffness ratio
■ No moving cables
■ Improved accuracy

■ Better inertia
■ Low risk of default than a serial structure

For further details – click on the top logo or contact us with your requirements.

The post Symetrie Hexapod stages appeared first on Rosh ElectrOptics ltd.

Piezo stages, mounts and motors

gil — Wed, 18 Nov 2020 10:57:11 +0000

Compact Stainless Steel Stage with Piezo Inertia Drive
Ideal for OEMs and Set-and-Hold Applications that Require Relative Positioning with High Resolutions
XY Stackable Using Counterbores and Included Dowel Pins in Base
Vertical Mounting using Right-Angle Bracket Adapter
Requires the KIM001 or KIM101 Piezo Inertia Controller (Sold Separately Below)

Thorlabs’ ORIC^® Piezoelectric Inertia Drive Stage provides fast and stable piezo-controlled linear motion control in a compact package.

Thorlabs’ Elliptec™ piezoelectric resonant motor technology
Ideal for OEMs and Applications Requiring Rapid and Precise Positioning
Micro-B USB and Picoflex^®1 Connectors for Control Signals
Multi-Drop Serial Communication Protocol Supported

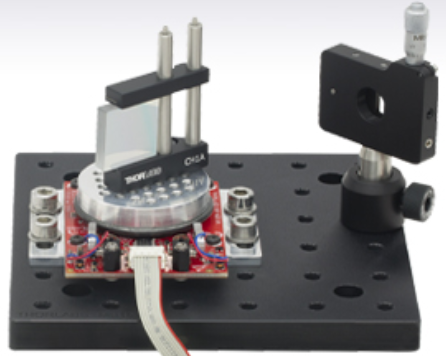

Ø50.0 mm (Ø1.97″) Rotation Stage
Absolute Home Position Found with Infrared and Magnetic Sensor Technologies
Magnetic Encoder Used to Position Stage
Bus Distributor Facilitates Control of up to Four Elliptec Devices

Piezo Stage – mechanical device, driven by a piezoelectric actuator, which provides one or more axis of motion.

Nanopositioning – the technology of moving and measuring with nm precision. Piezo stages are used in nanopositioning applications since they can achieve that level of precision.

nPoint designs and manufactures systems that use flexure hinges to link a moving platform to a static base.

A piezo stage can also be referred to as a nanopositioner, nanopositioning stage, piezo flexure stage, piezoelectric stage, or a nanopositioning device.

High-Speed Motion
Millisecond Step and Settle Times
Smooth Linear Motion
Billions of Cycles
Nanometer Positional Accuracy
Operate in UHV Environments
Extremely low Parasitic Motion
No Friction
Low Out-of-Plane Motion
Long Term Stability
Non-Magnetic option

The post Piezo stages, mounts and motors appeared first on Rosh ElectrOptics ltd.

Controllers

roshussl_admin — Wed, 19 Aug 2020 13:31:35 +0000

We offer Benchtop and rack based controllers for DC motors, stepper motors, and piezo actuators. The apt controllers are easily interfaced with a computer and can be used in combination seamlessly. The T-Cube series is a compact and scalable table top photonics solution.

The post Controllers appeared first on Rosh ElectrOptics ltd.

Motorized stages

roshussl_admin — Wed, 19 Aug 2020 13:27:55 +0000

Thorlabs’ motorized stages include linear translation stages with up to 300 mm of travel, motorized lab jacks for vertical translation,

rotation mounts and stages, goniometers, and high-resolution multi-axis platforms. The linear translation stages are offered in a number of different travel ranges that include as little travel as 1.5 mm.

nPoint specializes in piezo-driven flexure-guided nanopositioners and motion control tools that can be used in various environments, including ultra-high vacuum and military-spec. The use of capacitive feedback ensures outstanding motion linearity and position accuracy while the nPoint C.300 DSP controller provides flexibility in optimizing the response of the nanopositioner in a variety of applications. nPoint’s piezo stages provide X, Z, XY, XYZ and tip-tilt nanomotion control. Our nanopositioning systems are designed for motion critical applications including: nanolithography, atomic force microscopy (AFM), biophysics, and optical focusing.

In case of special requirements please contact us.

Please see below relevant links to our suppliers website

The post Motorized stages appeared first on Rosh ElectrOptics ltd.

Actuators

roshussl_admin — Wed, 19 Aug 2020 13:20:50 +0000

Thorlabs offers a wide range of DC motor, stepper motor, and piezo and manual adjusters for our extensive collection of stages and mounts.

The post Actuators appeared first on Rosh ElectrOptics ltd.

Multi-axis Platforms

roshussl_admin — Wed, 19 Aug 2020 13:13:44 +0000

Thorlabs offers a wide range of 3-, 4-, 5-, and 6-axis stages for use in nano-positioning applications. Thorlabs use a flexure technology that is very reliable, repeatable,

and offers several additional advantages over other technologies. We also offer a wide range of accessories and mounting fixtures.

The post Multi-axis Platforms appeared first on Rosh ElectrOptics ltd.

Manual and miniature stages

roshussl_admin — Wed, 19 Aug 2020 13:00:14 +0000

Thorlabs’ manual translation stages are offered in a range of maximum travel, from less than 1/4″ (6 mm) up to 2″ (50 mm) and long travel, large area platforms.

Many of these stages can be ordered in multi-axis configurations, providing XY or XYZ translation. In addition to standard linear translation stages, we offer rotation mounts and goniometers. For fiber coupling applications, please see our Multi-Axis Platforms, which offer finer adjustment than our standard manual translation stages provide.

In case of special requirements please contact us.

Please see below relevant links to our suppliers website

The post Manual and miniature stages appeared first on Rosh ElectrOptics ltd.

Rotary Stages

roshussl_admin — Wed, 19 Aug 2020 05:40:24 +0000

Our rotary stages are designed with many different size apertures, table diameters, and mounting options to provide the ideal solution for your industrial automation application.
Newmark System’s products are used in industrial robots, fiberoptics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, electronic manufacturing, and other high-performance industrial automation applications. In addition, Newmark System’s manufactures drives and motion controllers that perfectly complement our product line.

Please see below relevant links to our suppliers website

The post Rotary Stages appeared first on Rosh ElectrOptics ltd.

Gimbal Mounts

roshussl_admin — Wed, 19 Aug 2020 08:43:43 +0000

Newmark System’s optical gimbals are designed for precise scanning, pointing and tracking of large optics, antennae, telescopes, and cameras.
Our Products are also used to test and calibrate inertial sensors, seeker heads and gyros. Newmark’s optical products come in a wide range of sizes and capabilities to work in a vast array of positioning environments.

The post Gimbal Mounts appeared first on Rosh ElectrOptics ltd.

Gantry Stages

roshussl_admin — Tue, 18 Aug 2020 12:51:08 +0000

XY Cartesian Gantry Systems

-The CS XY Gantry Series is offered in travel lengths of 500mm, 1000mm, and 1500mm. Custom travel lengths are available, please consult factory.

With speeds up to 1 m/sec the CS XY Gantry Series is prefect for applications requiring high speed positioning of light payloads.

-The ETL XY gantry line is offered in travel lengths of 400mm, 500mm and 600mm. The ETL XY Gantry comes standard with a high torque size 23 stepper motors.

The stepper motor version is available with rotary encoders. End of travel limit switches come standard on the ETL stages.

-The DB Series XY Gantry stage is offered in travel lengths from 400mm to 1000mm.

This XY gantry comes standard with a high torque NEMA 23 stepper motors and a cable management system for the lower stage.

Cable management is available on the upper stage for payloads that have cables running to them. End of travel limit switches come standard on the DBSeries linear stage.

Newmark Systems manufactures a range on XY Cartesian Gantry Stages that range up to 1.5 meters in travel and speeds up to 1.5 m/sec.

The post Gantry Stages appeared first on Rosh ElectrOptics ltd.
